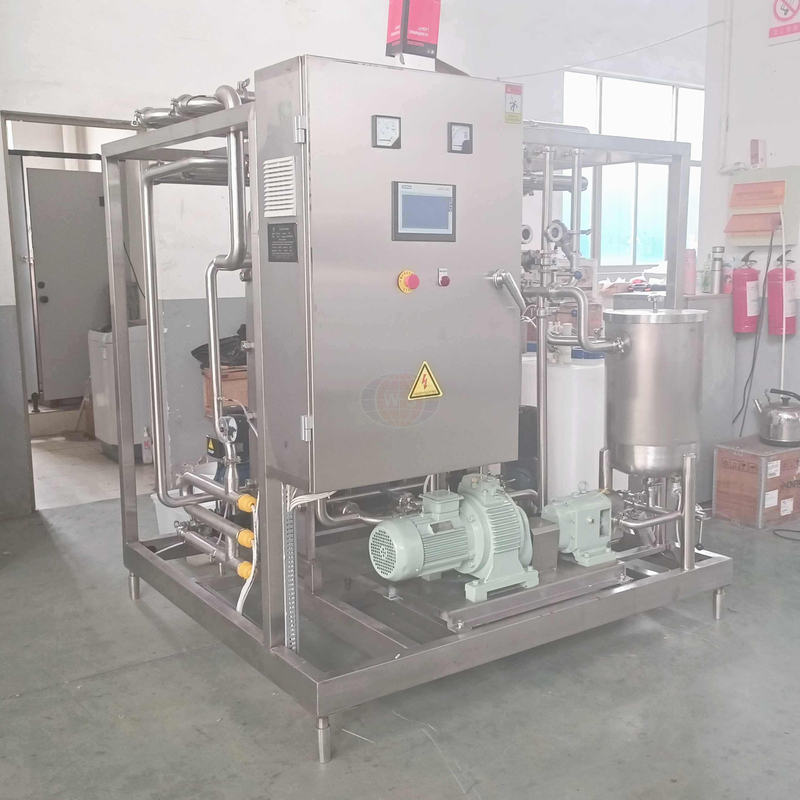

Introduction of plate pasteurizer
Plate pasteurizer is a kind of sterilization equipment specially designed for milk drinks or similar liquid materials. It's a
ideal equipment to extend the shelf life of materials by sterilization and cooling. The heating, sterilization, heat preservation and cooling requirements designed according to different processes, different materials and different process combinations can meet the process requirements. With a variety of safety protection measures, high temperature, alarm and low temperature backflow. At the same time, according to the requirements of users, automatic control system can be configured.
Our strengths:
*It can be designed according to the special requirements of users
*Multiple products can be produced on the same production line
*It can produce high quality products and keep nutrients
*Aromatic substances can be added and mixed precisely
*Extend the shelf life of products
*Large output and small loss
*Application of high technology to save energy consumption
*According to the customer's choice, we can provide a variety of milk configuration
*Fruit juice type, packaging type and automation degree can be matched at will according to customer requirements.
| Model | Capacity (L) | Heat exchanging area(㎡）
| Power（kw）
| Steam consumption(kg/h) | External dimension(mm) | Total weight (kg) |
| BS-1 | 1000 | 6
| 4.5 | 200
| 1600×1600×1800 | 650 |
| BS-2 | 2000 | 8 | 4.5 | 350 | 1600×1600×1800 | 750 |
| BS-3 | 3000 | 10 | 5.0 | 500 | 1800×1600×1800 | 800 |
| BS-5 | 5000 | 12 | 5.5 | 700 | 1800×1600×2000 | 1200
|
| BS-6 | 6000 | 12 | 5.5 | 800 | 1800×1800×2000 | 1200 |
| BS-7 | 7000 | 14 | 6.5 | 950 | 1800×1800×2000 | 1300 |
| BS-8 | 8000 | 16
| 6.5 | 1050 | 2000×2000×2200 | 1500
|
| BS-10 | 10000 | 24 | 8.0 | 1500 | 2000×2000×2200 | 1800 |
| BS-15 | 15000 | 32 | 9.5 | 2000 | 2500×2500×1200 | 2500 |
